FF78減速機詳細信息

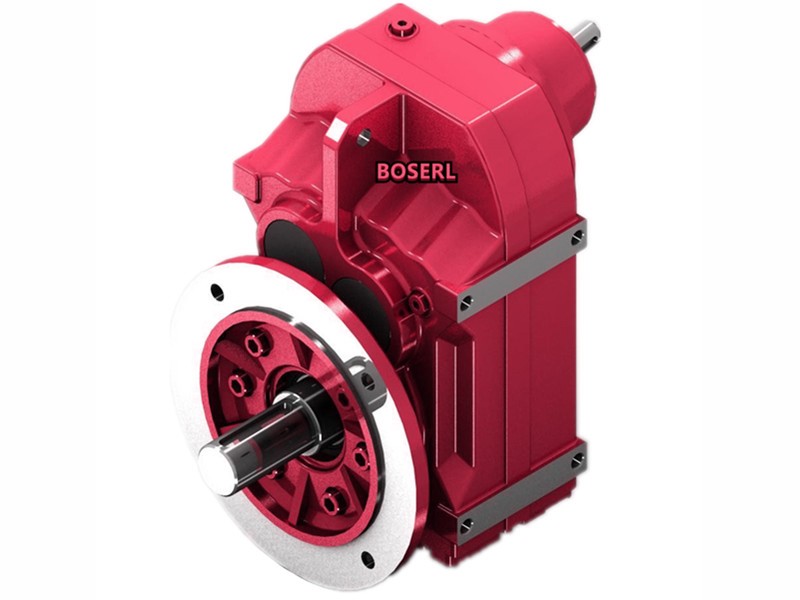

FF78減速機
訂購熱線：13360667204
FF78減速機選型計算：齒輪減速馬達
移動式滾筒傳送線參數：傳送物料6500Kg，輥筒直徑φ105mm，傳送速度0.51m/s
運輸速度0.51m×60s=30.6m每分鐘
3.14(圓周率)×0.105m(輥筒直徑φ105mm)=0.3297m
30.6m÷0.3297m=92.81r/min輸出轉數
傳送物料6500Kg換算成N=63700n
63700n×0.0525輥筒半徑×0.06摩擦系數=200.655×2=401.31N.m輸出扭矩
1400電機輸入轉速÷92.81r/min=15.08減速比
401.31N.m輸出扭矩÷15.08減速比=26.61N.m電機扭矩
26.61N.m電機扭矩換算成電機功率=4.22KW左右
對應的FF78減速機選型參數：
型號：FF78-BEJ5.5KW
減速比：15.64
輸出轉數：93rpm
輸出扭矩：560N.m
安全系數：2.7
FF78減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）剎車電機減速機

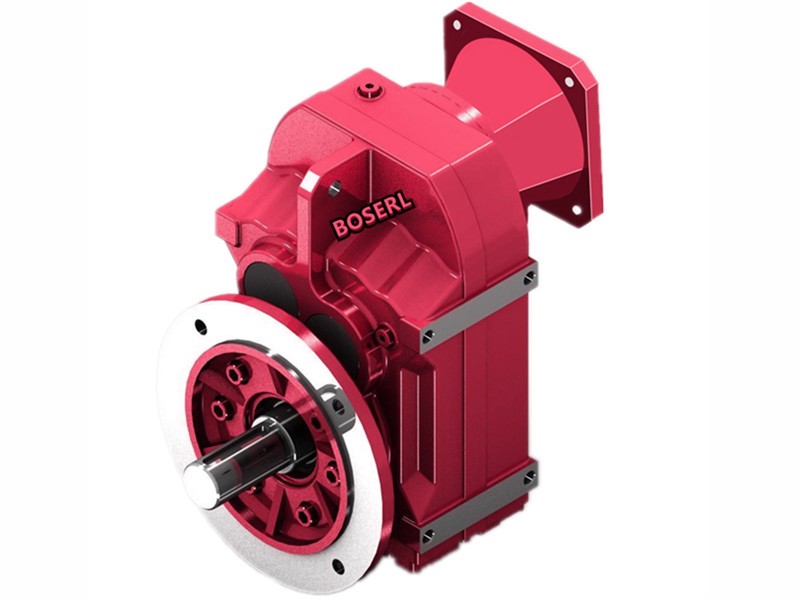

FF78平行軸斜齒輪減速機型號：
FF77系列減速機參數大全：平行軸斜齒輪減速機
FF77減速機配0.37KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| FF77-Y0.37KW | 0.37KW | 4.90rpm | 720N.m | 2.10 |
| FF77-Y0.37KW | 0.37KW | 5.20rpm | 670N.m | 2.20 |
| FF77-Y0.37KW | 0.37KW | 6.10rpm | 575N.m | 2.60 |
| FF77-Y0.37KW | 0.37KW | 7.00rpm | 505N.m | 3.00 |
FF77減速機配0.55KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| FF77-Y0.55KW | 0.55KW | 6.10rpm | 850N.m | 1.75 |
| FF77-Y0.55KW | 0.55KW | 7.00rpm | 750N.m | 2.00 |
| FF77-Y0.55KW | 0.55KW | 7.30rpm | 715N.m | 2.10 |
| FF77-Y0.55KW | 0.55KW | 8.30rpm | 630N.m | 2.40 |
| FF77-Y0.55KW | 0.55KW | 9.70rpm | 540N.m | 2.80 |
| FF77-Y0.55KW | 0.55KW | 11.00rpm | 495N.m | 3.00 |
| FF77-Y0.55KW | 0.55KW | 12.00rpm | 435N.m | 3.40 |
| FF77-Y0.55KW | 0.55KW | 13.00rpm | 410N.m | 3.60 |
| FF77-Y0.55KW | 0.55KW | 15.00rpm | 360N.m | 4.20 |
FF77減速機配0.75KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| FF77-Y0.75KW | 0.75KW | 6.40rpm | 1120N.m | 1.35 |
| FF77-Y0.75KW | 0.75KW | 7.20rpm | 980N.m | 1.50 |
| FF77-Y0.75KW | 0.75KW | 7.60rpm | 940N.m | 1.60 |
| FF77-Y0.75KW | 0.75KW | 8.60rpm | 830N.m | 1.80 |
| FF77-Y0.75KW | 0.75KW | 10.0rpm | 710N.m | 2.10 |
| FF77-Y0.75KW | 0.75KW | 11.0rpm | 650N.m | 2.30 |
| FF77-Y0.75KW | 0.75KW | 13.0rpm | 570N.m | 2.60 |
| FF77-Y0.75KW | 0.75KW | 13.0rpm | 540N.m | 2.80 |
FF77減速機配1.1KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| FF77-Y1.1KW | 1.1KW | 7.20rpm | 1460N.m | 1.00 |
| FF77-Y1.1KW | 1.1KW | 7.50rpm | 1390N.m | 1.10 |
| FF77-Y1.1KW | 1.1KW | 8.50rpm | 1230N.m | 1.20 |
| FF77-Y1.1KW | 1.1KW | 10.0rpm | 1050N.m | 1.45 |
| FF77-Y1.1KW | 1.1KW | 11.0rpm | 960N.m | 1.55 |
| FF77-Y1.1KW | 1.1KW | 12.0rpm | 840N.m | 1.75 |
| FF77-Y1.1KW | 1.1KW | 13.0rpm | 800N.m | 1.85 |
| FF77-Y1.1KW | 1.1KW | 15.0rpm | 700N.m | 2.10 |
| FF77-Y1.1KW | 1.1KW | 17.0rpm | 630N.m | 2.40 |
| FF77-Y1.1KW | 1.1KW | 19.0rpm | 555N.m | 2.70 |
FF77減速機配1.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| FF77-Y1.5KW | 1.5KW | 8.60rpm | 1660N.m | 0.90 |
| FF77-Y1.5KW | 1.5KW | 10.0rpm | 1420N.m | 1.05 |
| FF77-Y1.5KW | 1.5KW | 11.0rpm | 1300N.m | 1.15 |
| FF77-Y1.5KW | 1.5KW | 12.0rpm | 1140N.m | 1.30 |
| FF77-Y1.5KW | 1.5KW | 13.0rpm | 1080N.m | 1.40 |
| FF77-Y1.5KW | 1.5KW | 15.0rpm | 950N.m | 1.60 |
| FF77-Y1.5KW | 1.5KW | 17.0rpm | 850N.m | 1.75 |
| FF77-Y1.5KW | 1.5KW | 19.0rpm | 750N.m | 2.00 |
| FF77-Y1.5KW | 1.5KW | 20.0rpm | 725N.m | 2.10 |
| FF77-Y1.5KW | 1.5KW | 22.0rpm | 665N.m | 2.20 |
| FF77-Y1.5KW | 1.5KW | 25.0rpm | 580N.m | 2.60 |
| FF77-Y1.5KW | 1.5KW | 26.0rpm | 550N.m | 2.70 |
| FF77-Y1.5KW | 1.5KW | 30.0rpm | 480N.m | 3.10 |
| FF77-Y1.5KW | 1.5KW | 33.0rpm | 435N.m | 3.40 |
| FF77-Y1.5KW | 1.5KW | 37.0rpm | 380N.m | 3.90 |
| FF77-Y1.5KW | 1.5KW | 39.0rpm | 365N.m | 3.00 |
| FF77-Y1.5KW | 1.5KW | 45.0rpm | 315N.m | 4.40 |
FF77減速機配2.2KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| FF77-Y2.2KW | 2.2KW | 12.0rpm | 1680N.m | 0.90 |
| FF77-Y2.2KW | 2.2KW | 13.0rpm | 1590N.m | 0.95 |
| FF77-Y2.2KW | 2.2KW | 15.0rpm | 1390N.m | 1.05 |
| FF77-Y2.2KW | 2.2KW | 17.0rpm | 1260N.m | 1.20 |
| FF77-Y2.2KW | 2.2KW | 19.0rpm | 1100N.m | 1.35 |
| FF77-Y2.2KW | 2.2KW | 21.0rpm | 970N.m | 1.55 |
| FF77-Y2.2KW | 2.2KW | 24.0rpm | 850N.m | 1.75 |
| FF77-Y2.2KW | 2.2KW | 26.0rpm | 810N.m | 1.85 |
| FF77-Y2.2KW | 2.2KW | 29.0rpm | 710N.m | 2.10 |
| FF77-Y2.2KW | 2.2KW | 33.0rpm | 640N.m | 2.30 |
| FF77-Y2.2KW | 2.2KW | 39.0rpm | 535N.m | 2.10 |
| FF77-Y2.2KW | 2.2KW | 45.0rpm | 460N.m | 3.00 |
| FF77-Y2.2KW | 2.2KW | 50.0rpm | 420N.m | 3.40 |
| FF77-Y2.2KW | 2.2KW | 56.0rpm | 375N.m | 4.00 |
FF77減速機配3KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| FF77-Y3KW | 3KW | 17.0rpm | 1680N.m | 0.90 |
| FF77-Y3KW | 3KW | 19.0rpm | 1470N.m | 1.00 |
| FF77-Y3KW | 3KW | 22.0rpm | 1300N.m | 1.15 |
| FF77-Y3KW | 3KW | 25.0rpm | 1140N.m | 1.30 |
| FF77-Y3KW | 3KW | 26.0rpm | 1080N.m | 1.40 |
| FF77-Y3KW | 3KW | 30.0rpm | 950N.m | 1.55 |
| FF77-Y3KW | 3KW | 33.0rpm | 850N.m | 1.75 |
| FF77-Y3KW | 3KW | 38.0rpm | 750N.m | 2.00 |
| FF77-Y3KW | 3KW | 40.0rpm | 720N.m | 1.55 |
| FF77-Y3KW | 3KW | 46.0rpm | 620N.m | 2.20 |
| FF77-Y3KW | 3KW | 51.0rpm | 565N.m | 2.50 |
| FF77-Y3KW | 3KW | 57.0rpm | 500N.m | 3.00 |
| FF77-Y3KW | 3KW | 68.0rpm | 420N.m | 3.60 |
FF77減速機配4KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| FF77-Y4KW | 4KW | 22.0rpm | 1730N.m | 0.85 |
| FF77-Y4KW | 4KW | 25.0rpm | 1520N.m | 1.00 |
| FF77-Y4KW | 4KW | 26.0rpm | 1440N.m | 1.05 |
| FF77-Y4KW | 4KW | 30.0rpm | 1260N.m | 1.20 |
| FF77-Y4KW | 4KW | 34.0rpm | 1140N.m | 1.30 |
| FF77-Y4KW | 4KW | 38.0rpm | 1000N.m | 1.50 |
| FF77-Y4KW | 4KW | 43.0rpm | 880N.m | 1.70 |
| FF77-Y4KW | 4KW | 49.0rpm | 780N.m | 1.90 |
| FF77-Y4KW | 4KW | 57.0rpm | 665N.m | 2.20 |
| FF77-Y4KW | 4KW | 46.0rpm | 820N.m | 1.65 |
| FF77-Y4KW | 4KW | 51.0rpm | 750N.m | 1.90 |
| FF77-Y4KW | 4KW | 57.0rpm | 665N.m | 2.20 |
| FF77-Y4KW | 4KW | 68.0rpm | 560N.m | 2.70 |
| FF77-Y4KW | 4KW | 74.0rpm | 515N.m | 2.90 |
FF77減速機配5.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| FF77-Y5.5KW | 5.5KW | 30.0rpm | 1740N.m | 0.85 |
| FF77-Y5.5KW | 5.5KW | 33.0rpm | 1570N.m | 0.95 |
| FF77-Y5.5KW | 5.5KW | 38.0rpm | 1380N.m | 1.10 |
| FF77-Y5.5KW | 5.5KW | 43.0rpm | 1210N.m | 1.25 |
| FF77-Y5.5KW | 5.5KW | 49.0rpm | 1070N.m | 1.40 |
| FF77-Y5.5KW | 5.5KW | 57.0rpm | 920N.m | 1.55 |
| FF77-Y5.5KW | 5.5KW | 57.0rpm | 920N.m | 1.65 |
| FF77-Y5.5KW | 5.5KW | 68.0rpm | 770N.m | 1.95 |
| FF77-Y5.5KW | 5.5KW | 74.0rpm | 710N.m | 2.10 |
| FF77-Y5.5KW | 5.5KW | 83.0rpm | 630N.m | 2.40 |
| FF77-Y5.5KW | 5.5KW | 93.0rpm | 560N.m | 2.70 |
| FF77-Y5.5KW | 5.5KW | 103rpm | 505N.m | 3.00 |
| FF77-Y5.5KW | 5.5KW | 119rpm | 440N.m | 3.40 |
FF77減速機配7.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| FF77-Y7.5KW | 7.5KW | 44.0rpm | 1640N.m | 0.90 |
| FF77-Y7.5KW | 7.5KW | 49.0rpm | 1450N.m | 1.05 |
| FF77-Y7.5KW | 7.5KW | 58.0rpm | 1240N.m | 1.15 |
| FF77-Y7.5KW | 7.5KW | 58.0rpm | 1240N.m | 1.20 |
| FF77-Y7.5KW | 7.5KW | 69.0rpm | 1040N.m | 1.45 |
| FF77-Y7.5KW | 7.5KW | 75.0rpm | 950N.m | 1.55 |
| FF77-Y7.5KW | 7.5KW | 84.0rpm | 850N.m | 1.75 |
| FF77-Y7.5KW | 7.5KW | 94.0rpm | 760N.m | 1.95 |
| FF77-Y7.5KW | 7.5KW | 105rpm | 685N.m | 2.20 |
| FF77-Y7.5KW | 7.5KW | 120rpm | 590N.m | 2.50 |
| FF77-Y7.5KW | 7.5KW | 135rpm | 530N.m | 2.80 |
| FF77-Y7.5KW | 7.5KW | 158rpm | 450N.m | 2.40 |
| FF77-Y7.5KW | 7.5KW | 178rpm | 400N.m | 2.70 |
| FF77-Y7.5KW | 7.5KW | 199rpm | 355N.m | 3.00 |
| FF77-Y7.5KW | 7.5KW | 221rpm | 320N.m | 3.30 |
| FF77-Y7.5KW | 7.5KW | 255rpm | 280N.m | 3.80 |
| FF77-Y7.5KW | 7.5KW | 285rpm | 250N.m | 4.30 |
| FF77-Y7.5KW | 7.5KW | 343rpm | 205N.m | 4.80 |
FF77減速機配11KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| FF77-Y11KW | 11KW | 75.0rpm | 1400N.m | 1.05 |
| FF77-Y11KW | 11KW | 84.0rpm | 1240N.m | 1.20 |
| FF77-Y11KW | 11KW | 94.0rpm | 1110N.m | 1.35 |
| FF77-Y11KW | 11KW | 105rpm | 1000N.m | 1.50 |
| FF77-Y11KW | 11KW | 121rpm | 860N.m | 1.75 |
| FF77-Y11KW | 11KW | 135rpm | 775N.m | 1.95 |
| FF77-Y11KW | 11KW | 159rpm | 660N.m | 1.65 |
| FF77-Y11KW | 11KW | 179rpm | 585N.m | 1.85 |
| FF77-Y11KW | 11KW | 200rpm | 525N.m | 2.00 |
| FF77-Y11KW | 11KW | 222rpm | 470N.m | 2.30 |
| FF77-Y11KW | 11KW | 256rpm | 410N.m | 2.60 |
| FF77-Y11KW | 11KW | 286rpm | 365N.m | 2.90 |
| FF77-Y11KW | 11KW | 345rpm | 300N.m | 3.30 |
FF77減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：F78減速機
關鍵詞:GFF系列減速器配制動電機一體式_剎車電機減速機_FF系列減速器_制動電機減速機_減速器配抱閘_減速機配抱閘_FF系列減速機_FF型減速機_GFF系列減速機_配剎車減速機_配制動減速機_配抱閘減速機_抱閘電機減速機
FF系列齒輪減速馬達型號：FF28減速機,FF38減速機,FF48減速機,FF68減速機,FF78減速機,FF88減速機,FF98減速機,FF108減速機,FF128減速機,FF158減速機
FF系列電動機減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
