SAF58減速機詳細信息
SAF58減速機
訂購熱線：13360667204
SAF58減速機傳動比計算：齒輪減速馬達
升降機參數：齒輪直徑260，承重2300斤，一分鐘上升34米
34米÷（0.26滾筒直徑X3.14）=41.65轉每分鐘
2300斤換算成扭矩=2254N.m
2254N.m×0.13滾筒半徑=293.02N.m
電機轉數1400÷輸出轉數41.65=33.61比
293.02N.m輸出扭矩÷33.61比=8.72N.m電機扭矩
8.72N.m電機扭矩?fù)Q算成功率1.38KW以上
上下提升的升降機，我們通常建議用S系列自鎖減速機加剎車電機
對應的SAF58減速機選型參數：
型號：SAF58-BVPEJ1.5KW
減速比：32.48
輸出轉數：44轉每分鐘
輸出扭矩：265N.m
安全系數：0.9
SAF58減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）伺服電機渦輪渦桿減速機

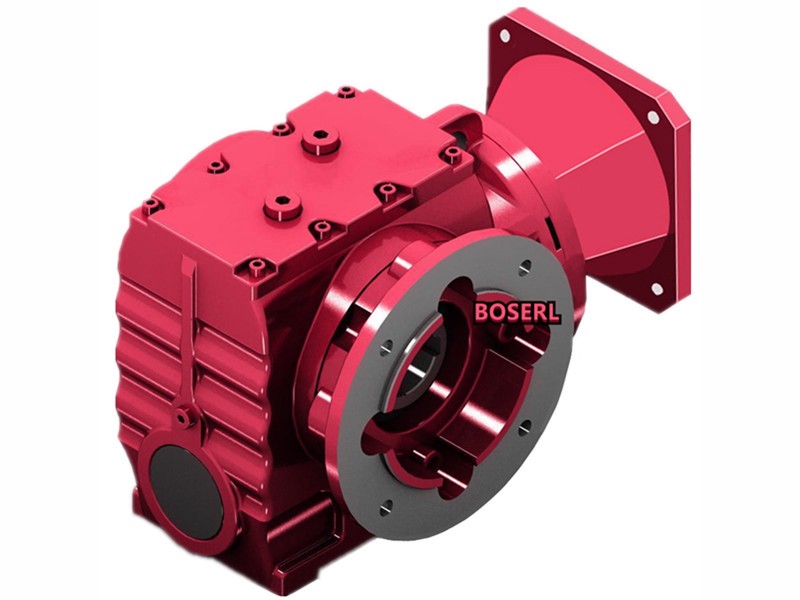

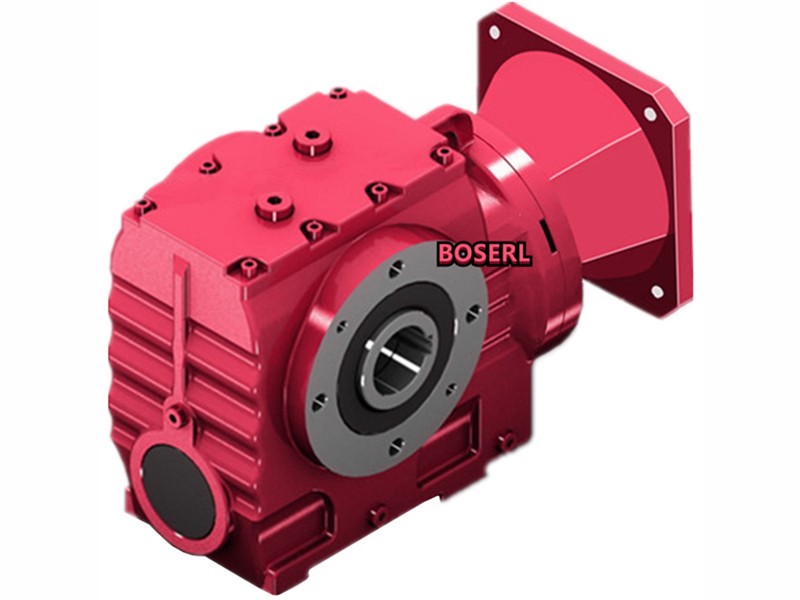

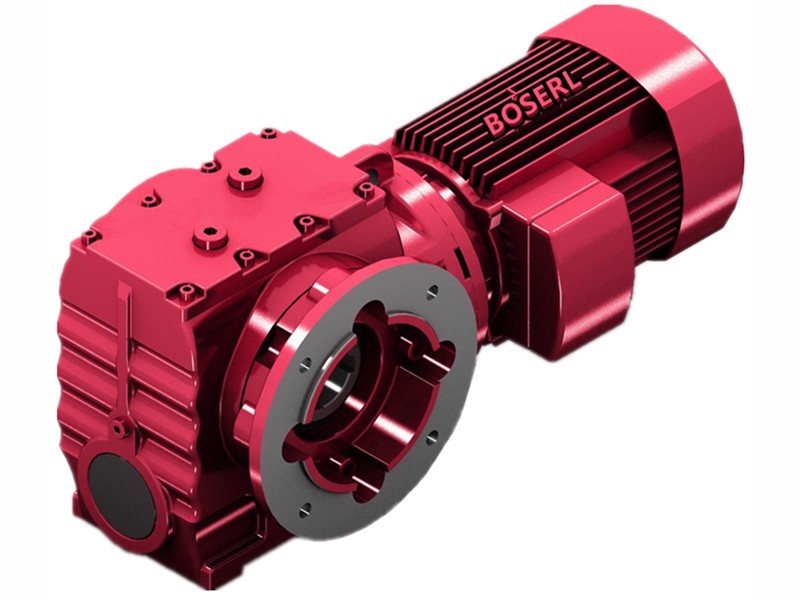

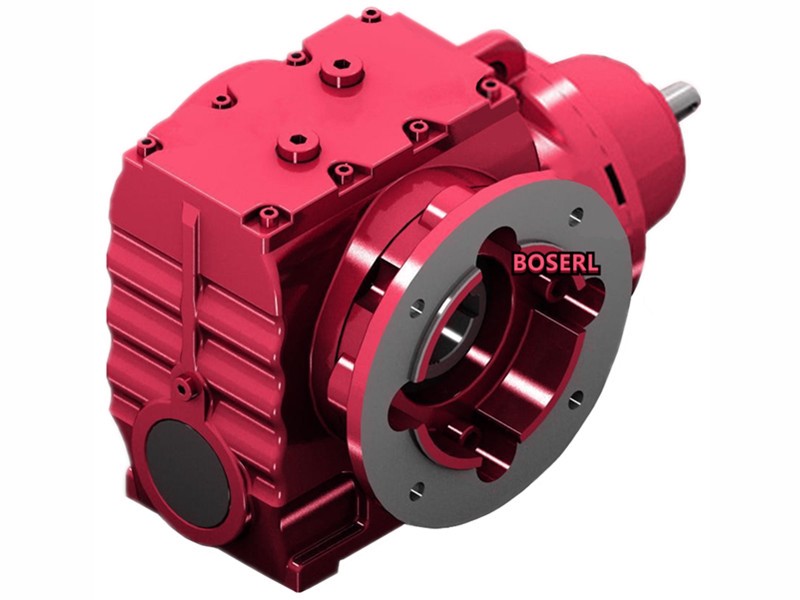

SAF58斜齒輪渦輪減速機型號：
SAF58系列減速機參數大全：自鎖減速機
SAF58減速機配0.18KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S57Y0.18KW | 0.18KW | 6.60rpm | 154N.m | 1.90 |
| S57Y0.18KW | 0.18KW | 7.10rpm | 143N.m | 2.10 |
| S57Y0.18KW | 0.18KW | 8.40rpm | 125N.m | 2.40 |
| S57Y0.18KW | 0.18KW | 9.60rpm | 110N.m | 2.70 |
SAF58減速機配0.25KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S57Y0.25KW | 0.25KW | 6.50rpm | 215N.m | 1.35 |
| S57Y0.25KW | 0.25KW | 7.00rpm | 200N.m | 1.45 |
| S57Y0.25KW | 0.25KW | 8.20rpm | 176N.m | 1.70 |
| S57Y0.25KW | 0.25KW | 9.50rpm | 155N.m | 1.90 |
| S57Y0.25KW | 0.25KW | 10.0rpm | 146N.m | 2.00 |
| S57Y0.25KW | 0.25KW | 12.0rpm | 128N.m | 2.30 |
| S57Y0.25KW | 0.25KW | 14.0rpm | 111N.m | 2.60 |
| S57Y0.25KW | 0.25KW | 15.0rpm | 100N.m | 2.90 |
SAF58減速機配0.37KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S57Y0.37KW | 0.37KW | 6.90rpm | 300N.m | 0.95 |
| S57Y0.37KW | 0.37KW | 7.50rpm | 280N.m | 1.05 |
| S57Y0.37KW | 0.37KW | 8.70rpm | 245N.m | 1.20 |
| S57Y0.37KW | 0.37KW | 10.0rpm | 215N.m | 1.35 |
| S57Y0.37KW | 0.37KW | 11.0rpm | 205N.m | 1.45 |
| S57Y0.37KW | 0.37KW | 12.0rpm | 180N.m | 1.65 |
| S57Y0.37KW | 0.37KW | 15.0rpm | 156N.m | 1.90 |
| S57Y0.37KW | 0.37KW | 16.0rpm | 141N.m | 2.10 |
| S57Y0.37KW | 0.37KW | 19.0rpm | 122N.m | 2.40 |
| S57Y0.37KW | 0.37KW | 20.0rpm | 139N.m | 1.75 |
| S57Y0.37KW | 0.37KW | 21.0rpm | 115N.m | 2.50 |
| S57Y0.37KW | 0.37KW | 22.0rpm | 128N.m | 1.90 |
SAF58減速機配0.55KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S57Y0.55KW | 0.55KW | 8.70rpm | 365N.m | 0.80 |
| S57Y0.55KW | 0.55KW | 10.0rpm | 320N.m | 0.90 |
| S57Y0.55KW | 0.55KW | 11.0rpm | 300N.m | 0.95 |
| S57Y0.55KW | 0.55KW | 12.0rpm | 265N.m | 1.10 |
| S57Y0.55KW | 0.55KW | 15.0rpm | 230N.m | 1.25 |
| S57Y0.55KW | 0.55KW | 16.0rpm | 205N.m | 1.40 |
| S57Y0.55KW | 0.55KW | 19.0rpm | 182N.m | 1.60 |
| S57Y0.55KW | 0.55KW | 21.0rpm | 172N.m | 1.65 |
| S57Y0.55KW | 0.55KW | 25.0rpm | 165N.m | 1.50 |
| S57Y0.55KW | 0.55KW | 29.0rpm | 144N.m | 1.70 |
| S57Y0.55KW | 0.55KW | 31.0rpm | 135N.m | 1.80 |
| S57Y0.55KW | 0.55KW | 36.0rpm | 118N.m | 2.10 |
| S57Y0.55KW | 0.55KW | 42.0rpm | 101N.m | 2.40 |
| S57Y0.55KW | 0.55KW | 48.0rpm | 91N.m | 2.70 |
| S57Y0.55KW | 0.55KW | 56.0rpm | 78N.m | 3.10 |
| S57Y0.55KW | 0.55KW | 59.0rpm | 74N.m | 3.30 |
| S57Y0.55KW | 0.55KW | 68.0rpm | 68N.m | 2.50 |
SAF58減速機配0.75KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S57Y0.75KW | 0.75KW | 13.0rpm | 350N.m | 0.85 |
| S57Y0.75KW | 0.75KW | 15.0rpm | 305N.m | 0.95 |
| S57Y0.75KW | 0.75KW | 17.0rpm | 275N.m | 1.05 |
| S57Y0.75KW | 0.75KW | 20.0rpm | 235N.m | 1.20 |
| S57Y0.75KW | 0.75KW | 21.0rpm | 225N.m | 1.25 |
| S57Y0.75KW | 0.75KW | 26.0rpm | 215N.m | 1.15 |
| S57Y0.75KW | 0.75KW | 30.0rpm | 190N.m | 1.30 |
| S57Y0.75KW | 0.75KW | 32.0rpm | 178N.m | 1.40 |
| S57Y0.75KW | 0.75KW | 38.0rpm | 155N.m | 1.60 |
| S57Y0.75KW | 0.75KW | 44.0rpm | 133N.m | 1.85 |
| S57Y0.75KW | 0.75KW | 49.0rpm | 119N.m | 2.00 |
| S57Y0.75KW | 0.75KW | 58.0rpm | 103N.m | 2.40 |
| S57Y0.75KW | 0.75KW | 62.0rpm | 96N.m | 2.50 |
| S57Y0.75KW | 0.75KW | 72.0rpm | 90N.m | 1.90 |
| S57Y0.75KW | 0.75KW | 81.0rpm | 78N.m | 2.20 |
| S57Y0.75KW | 0.75KW | 87.0rpm | 73N.m | 2.30 |
| S57Y0.75KW | 0.75KW | 101rpm | 64N.m | 2.70 |
SAF58減速機配1.1KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S57Y1.1KW | 1.1KW | 20.0rpm | 350N.m | 0.80 |
| S57Y1.1KW | 1.1KW | 21.0rpm | 330N.m | 0.85 |
| S57Y1.1KW | 1.1KW | 25.0rpm | 285N.m | 0.95 |
| S57Y1.1KW | 1.1KW | 30.0rpm | 280N.m | 0.85 |
| S57Y1.1KW | 1.1KW | 32.0rpm | 260N.m | 0.95 |
| S57Y1.1KW | 1.1KW | 37.0rpm | 225N.m | 1.05 |
| S57Y1.1KW | 1.1KW | 44.0rpm | 197N.m | 1.25 |
| S57Y1.1KW | 1.1KW | 49.0rpm | 177N.m | 1.40 |
| S57Y1.1KW | 1.1KW | 57.0rpm | 152N.m | 1.60 |
| S57Y1.1KW | 1.1KW | 61.0rpm | 143N.m | 1.70 |
| S57Y1.1KW | 1.1KW | 73.0rpm | 121N.m | 1.75 |
| S57Y1.1KW | 1.1KW | 81.0rpm | 116N.m | 1.45 |
| S57Y1.1KW | 1.1KW | 86.0rpm | 108N.m | 1.55 |
| S57Y1.1KW | 1.1KW | 100rpm | 94N.m | 1.80 |
| S57Y1.1KW | 1.1KW | 117rpm | 80N.m | 2.10 |
| S57Y1.1KW | 1.1KW | 131rpm | 72N.m | 2.40 |
| S57Y1.1KW | 1.1KW | 154rpm | 62N.m | 2.70 |
SAF58減速機配1.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S57Y1.5KW | 1.5KW | 44.0rpm | 265N.m | 0.90 |
| S57Y1.5KW | 1.5KW | 49.0rpm | 235N.m | 1.00 |
| S57Y1.5KW | 1.5KW | 58.0rpm | 205N.m | 1.20 |
| S57Y1.5KW | 1.5KW | 62.0rpm | 194N.m | 1.25 |
| S57Y1.5KW | 1.5KW | 73.0rpm | 164N.m | 1.30 |
| S57Y1.5KW | 1.5KW | 81.0rpm | 157N.m | 1.05 |
| S57Y1.5KW | 1.5KW | 87.0rpm | 147N.m | 1.15 |
| S57Y1.5KW | 1.5KW | 100rpm | 128N.m | 1.35 |
| S57Y1.5KW | 1.5KW | 118rpm | 109N.m | 1.55 |
| S57Y1.5KW | 1.5KW | 132rpm | 98N.m | 1.75 |
| S57Y1.5KW | 1.5KW | 155rpm | 84N.m | 2.00 |
SAF58減速機配2.2KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S57Y2.2KW | 2.2KW | 100rpm | 188N.m | 0.90 |
| S57Y2.2KW | 2.2KW | 118rpm | 160N.m | 1.05 |
| S57Y2.2KW | 2.2KW | 132rpm | 144N.m | 1.20 |
| S57Y2.2KW | 2.2KW | 154rpm | 123N.m | 1.35 |
| S57Y2.2KW | 2.2KW | 165rpm | 116N.m | 1.45 |
| S57Y2.2KW | 2.2KW | 196rpm | 98N.m | 1.50 |
SAF58減速機配3KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S57Y3KW | 3KW | 135rpm | 192N.m | 0.90 |
| S57Y3KW | 3KW | 158rpm | 164N.m | 1.05 |
| S57Y3KW | 3KW | 168rpm | 154N.m | 1.10 |
| S57Y3KW | 3KW | 200rpm | 130N.m | 1.10 |
SAF58減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：S58減速機
關鍵詞:GSAF系列減速機配電機一體式_伺服電機渦輪渦桿減速機_立式蝸桿減速機_立式蝸輪蝸桿減速機_SAF系列減速機_SAF系列減速器_伺服電機渦輪渦桿減速器_伺服渦輪渦桿減速機_立式蝸輪減速機
SAF系列蝸輪蝸桿減速機型號：SAF38減速機,SAF48減速機,SAF58減速機,SAF68減速機,SAF78減速機,SAF88減速機,SAF98齒輪減速馬達
SAF系列自鎖減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: SAF58減速機 SAF57斜齒輪渦輪減速機 SAF57系列減速機 SAF57減速機傳動比 SAF57減速機選型參數 SAF57減速機CAD三維圖
