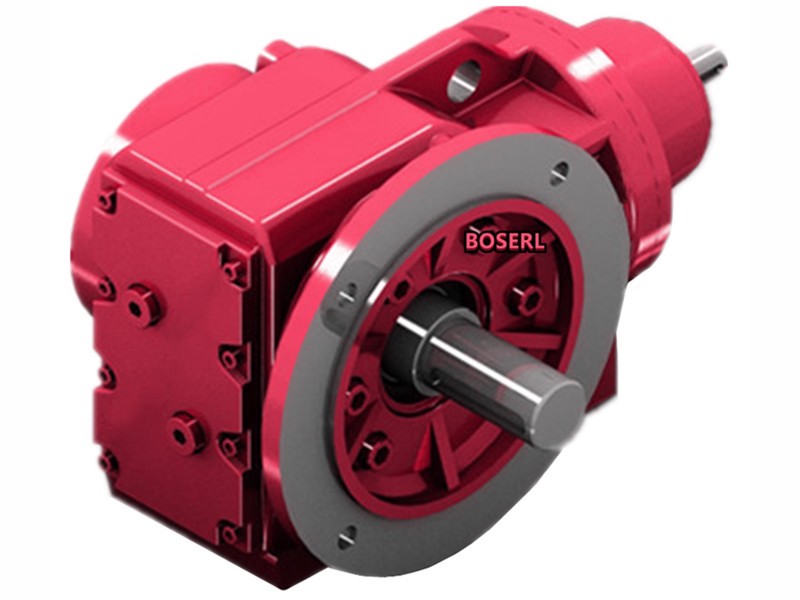

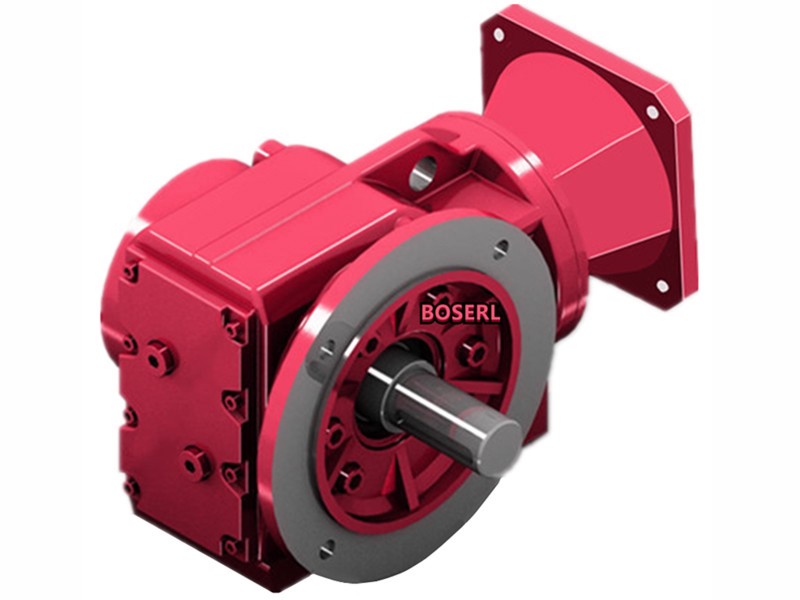

KF78減速機詳細信息
KF78減速機
訂購熱線：13360667204
KF78減速機選型計算：齒輪減速馬達
泥狀攪拌罐參數：攪動0.59噸泥狀物料，每分鐘攪動117圈，攪動葉輪直徑88
電機轉數1400÷117圈（輸出轉速）=減速比11.97
攪拌0.59噸泥狀物料=5782N
5782N×0.044攪動葉輪半徑=254.408×3攪拌泥狀物料扭矩放大三倍=763.224N.m
763.224N.m÷11.97減速比=63.76N.m電機扭矩
63.76N.m電機扭矩換算成功率10.12KW以上
對應的KF78減速機選型參數：
型號：KF78-BEJ11KW
減速比：12.36
輸出轉數：119轉每分鐘
輸出扭矩：870N.m
安全系數：1.15
KF78減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）伺服電機減速機
KF78傘齒輪減速機型號：
KF78系列減速機參數大全：直角減速機
KF78減速機配0.37KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| K77Y0.37KW | 192.18 | 0.37KW | 62Kg | 19700N |
| K77Y0.37KW | 179.37 | 0.37KW | 62Kg | 19800N |
| K77Y0.37KW | 154.02 | 0.37KW | 62Kg | 19900N |
KF78減速機配0.55KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| K77Y0.55KW | 154.02 | 0.55KW | 64Kg | 19500N |
| K77Y0.55KW | 135.28 | 0.55KW | 64Kg | 19700N |
| K77Y0.55KW | 128.52 | 0.55KW | 64Kg | 19700N |
| K77Y0.55KW | 113.56 | 0.55KW | 64Kg | 19800N |
| K77Y0.55KW | 97.05 | 0.55KW | 64Kg | 19900N |
KF78減速機配0.75KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| K77Y0.75KW | 154.02 | 0.75KW | 66Kg | 19000N |
| K77Y0.75KW | 135.28 | 0.75KW | 66Kg | 19300N |
| K77Y0.75KW | 128.52 | 0.75KW | 66Kg | 19400N |
| K77Y0.75KW | 113.56 | 0.75KW | 66Kg | 19500N |
| K77Y0.75KW | 97.05 | 0.75KW | 66Kg | 19700N |
KF78減速機配1.1KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| K77Y1.1KW | 135.28 | 1.1KW | 69Kg | 18300N |
| K77Y1.1KW | 128.52 | 1.1KW | 69Kg | 18500N |
| K77Y1.1KW | 113.56 | 1.1KW | 69Kg | 18800N |
| K77Y1.1KW | 97.05 | 1.1KW | 69Kg | 19200N |
| K77Y1.1KW | 88.97 | 1.1KW | 69Kg | 19400N |
| K77Y1.1KW | 78.07 | 1.1KW | 69Kg | 19500N |
| K77Y1.1KW | 73.99 | 1.1KW | 69Kg | 19600N |
KF78減速機配1.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| K77Y1.5KW | 135.28 | 1.5KW | 72Kg | 16500N |
| K77Y1.5KW | 128.52 | 1.5KW | 72Kg | 16800N |
| K77Y1.5KW | 113.56 | 1.5KW | 72Kg | 17600N |
| K77Y1.5KW | 97.05 | 1.5KW | 72Kg | 18300N |
| K77Y1.5KW | 88.97 | 1.5KW | 72Kg | 18600N |
| K77Y1.5KW | 78.07 | 1.5KW | 72Kg | 19000N |
| K77Y1.5KW | 73.99 | 1.5KW | 72Kg | 19100N |
| K77Y1.5KW | 64.75 | 1.5KW | 72Kg | 19400N |
| K77Y1.5KW | 58.34 | 1.5KW | 72Kg | 19500N |
| K77Y1.5KW | 51.18 | 1.5KW | 72Kg | 19700N |
| K77Y1.5KW | 45.16 | 1.5KW | 72Kg | 19800N |
| K77Y1.5KW | 40.04 | 1.5KW | 72Kg | 19800N |
KF78減速機配2.2KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| K77Y2.2KW | 113.56 | 2.2KW | 75Kg | 14200N |
| K77Y2.2KW | 97.05 | 2.2KW | 75Kg | 16000N |
| K77Y2.2KW | 88.97 | 2.2KW | 75Kg | 16700N |
| K77Y2.2KW | 78.07 | 2.2KW | 75Kg | 17600N |
| K77Y2.2KW | 73.99 | 2.2KW | 75Kg | 17900N |
| K77Y2.2KW | 64.75 | 2.2KW | 75Kg | 18400N |
| K77Y2.2KW | 58.34 | 2.2KW | 75Kg | 18800N |
| K77Y2.2KW | 51.18 | 2.2KW | 75Kg | 19100N |
| K77Y2.2KW | 45.16 | 2.2KW | 75Kg | 19300N |
| K77Y2.2KW | 40.04 | 2.2KW | 75Kg | 19500N |
| K77Y2.2KW | 35.2 | 2.2KW | 75Kg | 19600N |
| K77Y2.2KW | 30.89 | 2.2KW | 75Kg | 19800N |
| K77Y2.2KW | 29.27 | 2.2KW | 75Kg | 19800N |
| K77Y2.2KW | 25.62 | 2.2KW | 75Kg | 19900N |
KF78減速機配3KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| K77Y3KW | 88.97 | 3KW | 80Kg | 13100N |
| K77Y3KW | 78.07 | 3KW | 80Kg | 15000N |
| K77Y3KW | 73.99 | 3KW | 80Kg | 15600N |
| K77Y3KW | 64.75 | 3KW | 80Kg | 16800N |
| K77Y3KW | 58.34 | 3KW | 80Kg | 17500N |
| K77Y3KW | 51.18 | 3KW | 80Kg | 18100N |
| K77Y3KW | 45.16 | 3KW | 80Kg | 18600N |
| K77Y3KW | 40.04 | 3KW | 80Kg | 18900N |
| K77Y3KW | 35.2 | 3KW | 80Kg | 19200N |
| K77Y3KW | 30.89 | 3KW | 80Kg | 19400N |
KF78減速機配4KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| K77Y4KW | 64.75 | 4KW | 94Kg | 14100N |
| K77Y4KW | 58.34 | 4KW | 94Kg | 15400N |
| K77Y4KW | 51.18 | 4KW | 94Kg | 16600N |
| K77Y4KW | 45.16 | 4KW | 94Kg | 17400N |
| K77Y4KW | 40.04 | 4KW | 94Kg | 18000N |
| K77Y4KW | 38.39 | 4KW | 94Kg | 18200N |
| K77Y4KW | 35.2 | 4KW | 94Kg | 18500N |
| K77Y4KW | 30.89 | 4KW | 94Kg | 18900N |
| K77Y4KW | 29.27 | 4KW | 94Kg | 19000N |
| K77Y4KW | 25.62 | 4KW | 94Kg | 19300N |
| K77Y4KW | 23.08 | 4KW | 94Kg | 19500N |
| K77Y4KW | 20.25 | 4KW | 94Kg | 19600N |
KF78減速機配5.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| K77Y5.5KW | 45.16 | 5.5KW | 100Kg | 14700N |
| K77Y5.5KW | 40.04 | 5.5KW | 100Kg | 16000N |
| K77Y5.5KW | 30.89 | 5.5KW | 100Kg | 17800N |
| K77Y5.5KW | 29.27 | 5.5KW | 100Kg | 18100N |
| K77Y5.5KW | 25.62 | 5.5KW | 100Kg | 18600N |
| K77Y5.5KW | 23.08 | 5.5KW | 100Kg | 18900N |
| K77Y5.5KW | 20.25 | 5.5KW | 100Kg | 19200N |
| K77Y5.5KW | 17.87 | 5.5KW | 100Kg | 19400N |
| K77Y5.5KW | 15.84 | 5.5KW | 100Kg | 19200N |
| K77Y5.5KW | 13.52 | 5.5KW | 100Kg | 18600N |
| K77Y5.5KW | 12.36 | 5.5KW | 100Kg | 17900N |
| K77Y5.5KW | 10.84 | 5.5KW | 100Kg | 17400N |
KF78減速機配7.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| K77Y7.5KW | 30.89 | 7.5KW | 110Kg | 15500N |
| K77Y7.5KW | 29.27 | 7.5KW | 110Kg | 16000N |
| K77Y7.5KW | 25.62 | 7.5KW | 110Kg | 17100N |
| K77Y7.5KW | 23.08 | 7.5KW | 110Kg | 17700N |
| K77Y7.5KW | 20.25 | 7.5KW | 110Kg | 18300N |
| K77Y7.5KW | 17.87 | 7.5KW | 110Kg | 18500N |
| K77Y7.5KW | 15.84 | 7.5KW | 110Kg | 18200N |
| K77Y7.5KW | 13.52 | 7.5KW | 110Kg | 17700N |
| K77Y7.5KW | 12.36 | 7.5KW | 110Kg | 17000N |
| K77Y7.5KW | 10.84 | 7.5KW | 110Kg | 16600N |
| K77Y7.5KW | 9.56 | 7.5KW | 110Kg | 16300N |
| K77Y7.5KW | 8.48 | 7.5KW | 110Kg | 15900N |
| K77Y7.5KW | 7.24 | 7.5KW | 110Kg | 15400N |
KF78減速機配11KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| K77Y11KW | 23.08 | 11KW | 135Kg | 14600N |
| K77Y11KW | 20.25 | 11KW | 135Kg | 16000N |
| K77Y11KW | 17.87 | 11KW | 135Kg | 16600N |
| K77Y11KW | 15.84 | 11KW | 135Kg | 16500N |
| K77Y11KW | 13.52 | 11KW | 135Kg | 16200N |
| K77Y11KW | 12.36 | 11KW | 135Kg | 15500N |
| K77Y11KW | 10.84 | 11KW | 135Kg | 15300N |
| K77Y11KW | 9.56 | 11KW | 135Kg | 15100N |
| K77Y11KW | 8.48 | 11KW | 135Kg | 14800N |
| K77Y11KW | 7.24 | 11KW | 135Kg | 14400N |
KF78減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：K78減速機
關鍵詞:交流減速機配電機一體式_大扭力減速機_伺服電機減速機_伺服減速機_伺服電機減速器_伺服減速器_伺服電機減速機一體機_伺服減速機一體式_大扭力減速器_GKF系列減速機_KF系列減速機_伺服電機減速機一體式_伺服電機減速機一體化_KF系列減速器
KF系列齒輪減速馬達型號：KF38減速機,KF48減速機,KF58減速機,KF68減速機,KF78減速機,KF88減速機,KF98減速機,KF108減速機,KF128減速機,KF158減速機,KF167減速機,KF187減速機
KF系列直角減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: KF78減速機 KF77傘齒輪減速機 KF77系列減速機 KF77減速機傳動比 KF77減速機選型參數 KF77減速機CAD三維圖
